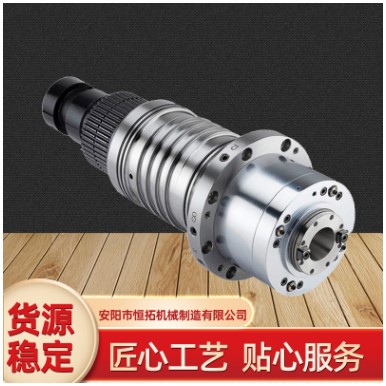

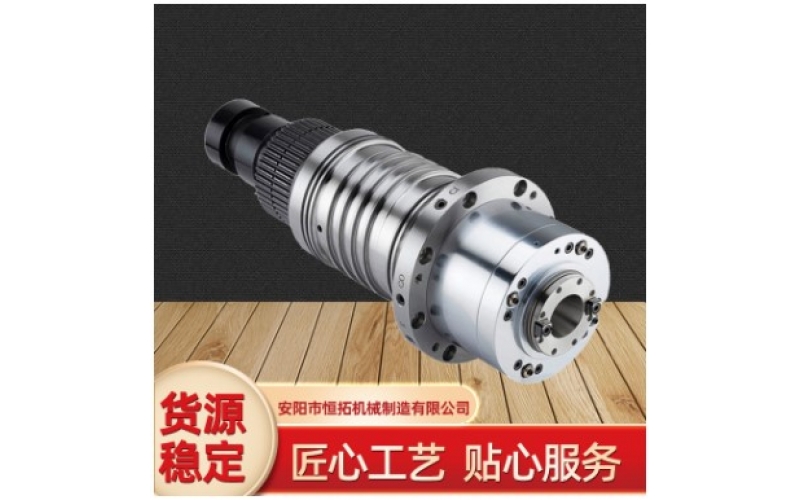

數控車床用機械主軸
車床用皮帶軸 Lathe Belt Dviven Spindles技術參數 Technical Data主軸型號Spindle type轉速Speed (r/min)外型尺寸Dimensions(mm)潤滑Lub軸端連接Joint of nose軸承型號Bearing type DD1D2LL1L2N-d1d2XL3HTPC10-185000100120140178.58
- 型號：
| 車床用皮帶軸 Lathe Belt Dviven Spindles | ||||||||||||
| 技術參數 Technical Data | ||||||||||||
| 主軸型號Spindle type | 轉速Speed (r/min) | 外型尺寸Dimensions(mm) | 潤滑Lub | 軸端連接Joint of nose | 軸承型號Bearing type | |||||||
| D | D1 | D2 | L | L1 | L2 | N-d1 | d2XL3 | |||||
| HTPC10-18 | 5000 | 100 | 120 | 140 | 178.5 | 88 | 130 | 6-￠9 | ￠14X9 | 油脂 | 4-7007C/P4 6006VVC3P5 | |
| BZC20F | 6000 | 125 | 148 | 170 | 187 | 70 | 67 | 6-￠9 | ￠14X9 | 油脂 | 4-7011C/P4 2-7010C/P4 | |
| BZC30F | 6000 | 125 | 148 | 170 | 187 | 70 | 67 | 6-￠9 | ￠14X9 | 油脂 | 4-7011C/P4 2-7010C/P4 | |
| HTPC140-28 | 6000 | 140 | 190 | 204 | 280 | 58 | 71 | 6-￠9 | ￠14X9 | 油脂 | 4-7012C/P4 | |
| HTPC140A25-35 | 6000 | 140 | 160 | 180 | 350 | 75 | 125 | 6-￠9 | ￠14X9 | 油脂 | 3-7015C/P4 2-7015C/P4 | |
| HTPC145-26 | 6000 | 145 | 162 | 180 | 257 | 54 | 107 | 6-￠9 | ￠14X9 | 油脂 | 3-7015C/P4 2-7014C/P4 | |
| HTPC150A25-28 | 6000 | 150 | 170 | 194 | 315 | 80 | 42 | 6-￠9 | ￠14X9 | 油脂 | A25-莫6 | 3-7010C/P4 2-7008C/P4 |
| HTC170A25-40 | 4000 | 170 | 190 | 210 | 395 | 92 | 58 | 6-￠9 | ￠14X9 | 油脂 | A25-莫6 | 2-7012C/P4 2-7010C/P4 |
| HTPC200A26-30 | 3000 | 200 | 230 | 260 | 305 | 99 | 27 | 6-￠14 | ￠20X13 | 油脂 | A26-莫6 | 3-7018C/P4 2-7016C/P4 |
